Seats 3 Adults
7' 0" x 5' 5" x 29"

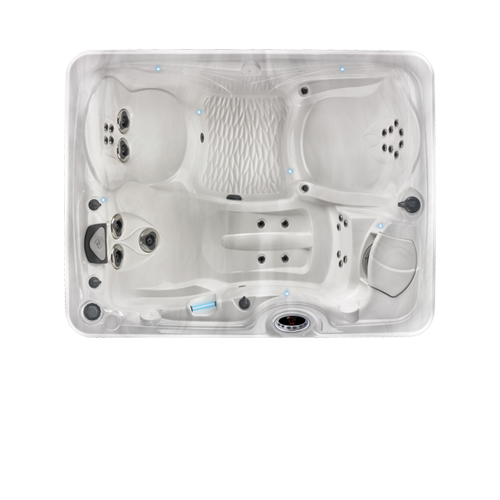

Much like its Hawaiian island namesake, the Kauai hot tub from Caldera Spas is luxurious and exotic. With room for three adults, the Kauai features the UltraMassage lounge, the EcstaSeat, and a series of powerful 20 jet system powered by a 2.0 HP pump for tension relief and hydrotherapy. The seating is angled for optimal socializing and is sure to enhance your relationships while relaxing you, mind and body.
|Dimensions||7' x 5'5" x 29"|
|Water capacity||220 gallons / 833 liters|
|Weight (Dry)||738 lbs.|
|Weight (Filled)||3,098 lbs.*|
|Hydromassage Jets||5 VersaSsage® jets, 2 Euro-Pulse® jets, 24 Euro jets|
|Jet Pumps||1 ReliaFlo® 2.0 HP single-speed, (4.0 BHP**)|
|Control System||Advent® LED control system; Includes GFCI protected sub-panel|
|Circulation Pump||EnergyPro® system|
|Heater Output||EnergyPro® system 4,300 watt|
|Electrical Requirements||230v/30 or 50 amp, 60Hz|
|Filter Size||50 sq. ft.|
|FROG Water Care System||Cartridge-ready|
|Monarch CD Ozone System||Available option|
|Caldera Entertainment Options||Wireless sound system with Bluetooth technology, wireless In-home Dock, Wireless TV|
|Mulit-color LED Lighting||Seven multi-color points-of-light, and illuminated assist bar|
|Energy Efficiency||Fully-insulated with FiberCor™ material, 2 lb. density; Certified to the California Energy Commission (CEC) in accordance with California law|
|Insulating Cover||3.5" to 2.5" tapered, 1.5 lb.-density foam core|
|Spa Shell and EcoTech® Cabinet Options||White Pearl or White Sands with Coastal Gray, Espresso or Redwood; Champagne Opal or with Espresso; Tuscan Sun or Sterling Marble with Coastal Gray or Espresso; Ocean Wave with Coastal Gray or Redwood|
**Brake Horsepower (BHP) is the horsepower a pump motor achieves for a brief period upon start-up.
360 ViewClick mouse and drag left or right to rotate.
Color Selector Tool
Click on a shell color swatch to view available siding color options for this hot tub model.
Watkins Manufacturing Corporation (“Watkins”) warrants to the original consumer purchaser (“you”) the following about your new Paradise Series spa, when purchased from an authorized dealer/service provider (“dealer”).
10 YEAR NO LEAK SHELL WARRANTY
Watkins warrants against water loss due to defects in the Paradise series spa shell for ten years.
7 YEAR SHELL SURFACE WARRANTY
Watkins warrants the acrylic surface material of the Paradise Series spas to be free from defects in materials and workmanship for seven years.
5 YEAR NO LEAK PLUMBING WARRANTY
Watkins warrants the Paradise Series spas against leaks caused by defects in manufacturing and workmanship for five years. This warranty specifically covers leaks from the wall fittings, jet fittings, internal plumbing, internal glue joints, drains, hoses, and all bonded parts.
5 YEAR COMPONENT WARRANTY
Watkins warrants the electrical components, pump(s), and other Paradise Series spa components against defects in materials and workmanship for five years. Some parts, most of which can be changed out without the use of tools, such as filter cartridges, filter lid, spa pillows, and cover locks are not included in this warranty, but are warranted to be free from defects in materials and workmanship at the time of delivery. Spa covers and other spa accessories are specifically excluded from this warranty, although they may be covered under other warranties. Please check with your Caldera dealer for details.
5 YEAR ENERGYPRO® HEATER WARRANTY
Watkins unconditionally warrants the EnergyPro heater to be free from defects in materials and workmanship for five years. This warranty defines unconditional, with the exclusion of commercial or industrial use, and improper installation, as warranty coverage without exception provided that the component has failed to operate properly within the spa’s system.
3 YEAR ECOTECH® CABINET WARRANTY
Watkins warrants the EcoTech simulated wood cabinet to be free from defects in materials and workmanship for three years. This warranty specifically covers the EcoTech cabinet’s structural integrity (exclusive of surface stain), including the material and assembly.
The EcoTech cabinet’s cosmetic finish is warranted to be free from defects in materials and workmanship at the time of initial delivery. Fading and weathering of the surface may naturally occur over time and are not considered defects. To restore the EcoTech cabinet’s appearance, refer to the spa Owner’s Manual for proper care and maintenance instructions.
2 YEAR LED LIGHTING SYSTEM WARRANTY
Watkins warrants the factory-installed LED light assemblies which consist of all lights within the spa to be free from defects in materials and workmanship for two years.
1 YEAR FROG® AND SPEAKERS WARRANTY
Watkins warrants the factory-installed FROG water care system, and the audio speakers to be free from defects in materials and workmanship for one year.
The following applies to all of the warranties listed:
EXTENT OF WARRANTY
This warranty extends only to the original consumer purchaser of the Caldera spa when purchased and originally installed within the boundaries of the United States. This warranty begins on your delivery date of the spa, but in no event later than one year from the date of purchase.
This warranty terminates upon any transfer of ownership, or if the spa is installed or relocated outside the boundaries of the United States by the original consumer purchaser prior to the expiration of the warranty period.
To make a claim under this warranty, contact your dealer. In the event you are unable to obtain service from the dealer, please contact Watkins Manufacturing Corporation at 1280 Park Center Drive, Vista, California, 92081, Attn: Customer Service Department (800) 669-1881 or via e-mail, email@example.com. You must give Watkins and/or your dealer written notice of any warranty claim, along with a copy of your original purchase receipt indicating the date of the purchase, within ten (10) days of the time you discover the claim. Watkins reserves the right to inspect the malfunction or defect on location.
Watkins or its Authorized Service Agent will repair any defects covered by this warranty. Except as described herein, you will not be charged for parts, labor or the freight costs for parts necessary to repair the spa for defects covered by this warranty. In some cases, the servicing dealer may charge you a reasonable repairperson travel/service charge that is not covered by this warranty. Please contact the dealer for information regarding any such charges.
Except as described above, this warranty does not cover defects or damage due to normal wear and tear, improper installation, alteration without Watkins’ prior written consent, accident, acts of God, misuse, abuse, commercial or industrial use, use of an accessory not approved by Watkins, failure to follow Watkins’ Pre-Delivery Instructions or Owner’s Manual, or repairs made or attempted by anyone other than an authorized representative of Watkins. Alteration includes, but is not limited to, any component or plumbing change, or electrical conversion. Visit www.calderaspas.com or contact your dealer for a list of manufacturer approved accessories.
TO THE EXTENT PERMITTED BY LAW, WATKINS SHALL NOT BE LIABLE FOR LOSS OF USE OF THE SPA OR OTHER INCIDENTAL OR CONSEQUENTIAL COSTS, EXPENSES, OR DAMAGES, INCLUDING BUT NOT LIMITED TO THE REMOVAL OF ANY DECK OR CUSTOM FIXTURE OR ANY COST TO REMOVE OR REINSTALL THE SPA, IF NEEDED. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you. ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THE APPLICABLE WARRANTY STATED ABOVE. Some states do not allow limitations on how long an implied warranty may last, so the above limitations may not apply to you.
This warranty gives you specific legal rights, and you may have other rights which vary from state to state.
